德國IKA RV 10 auto FLEX旋轉蒸發儀
德國IKA RV 10 auto FLEX旋轉蒸發儀 | 時間: August-20 14:19:01 | 分類:其它儀器
凌儀生物提供高速離心機，美國Bio-rad伯樂電泳，德國eppendorf艾本德移液器，美國ABI基因擴增儀PCR，雅培原位雜交儀，Thermo熱電離心機等實驗室儀器設備，以及Corning康寧，Axygen愛思進，Greiner格瑞拉等耗材要省錢，別錯過哦。
產品介紹：

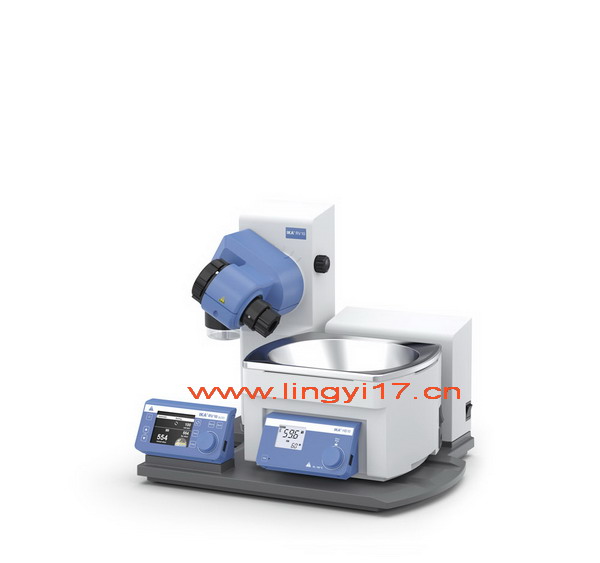

德國IKA RV 10 auto FLEX旋轉蒸發儀
The completely revised RV 10 auto is the flagship of the IKA Rotation Evaporator product line. Its impressive features include an innovative control concept with a bright, high-contrast, TFT, color-graphic control panel, an integrated vacuum controller, cooling water monitoring and mature safety standards. The RV 10 auto offer all properties required for efficient, safe, and cost-effective operations. These include automatic control of the vacuum and cooling water volume. Its intuitive handling concept quickly leads its users to their desired results in every application. Thanks to its extended ramp programming capability, the RV 10 auto allows users to carry out customized procedures. Other innovative features, such as smooth start, interval mode, right-left operation in interval mode, or the timer function for time-lapse tests, make everyday work in the laboratory much easier. Safety is ensured by the motorized lift with safety-stop function that automatically lifts the evaporation flask out of the heating bath in the case of power failure. Additional safety for users is provided by individually adjustable temperature safety circuits, protection against boiling dry, adjustable end-point recognition to prevent glass breakage, and a locking function. The receiving flask and the condenser are also available in coated versions. The USB port or the RS-232 interface enable remote control with the IKA “labworldsoft” software package and an update option with the firmware update tool. The device comes complete with vacuum hoses and hose connectors for your in-house cooling water supply.
- integrated vacuum controller
- integrated solvent library with 40 preset solvents and expansion option
- bright, high-contrast, TFT, color-graphic control panel
- universal safety heating bath
- optimized heating bath volume for rapid achievement of working temperature
- heating bath with ergonomic handles
- temperature safety circuit
- boil-dry protection
- intuitive handling concept with simple menu navigation
- programming option for up to ten individual procedures
- smooth start
- right or left rotation
- timer function
- end-point recognition
- push-off mechanism for tightly-fitting flasks
- digital interfaces: USB port and RS-232 interface for remote control
- multi-language operating system
- automatic cooling water management
- automatic ventilation
- automatic heating bath management
德國IKA RV 10 auto FLEX旋轉蒸發儀
技術參數：
| 速度范圍 | 5 - 300 rpm |
| 轉動可逆方向 | 是 |
| 實際轉速與設定轉速差 < 100rpm | 1 ±rpm |
| 實際轉速與設定轉速差 > 100rpm | 1 ±% |
| 升降架 | 馬達 |
| 行程 | 140 mm |
| 計時器 | 是 |
| 外形尺寸 | 500 x 430 x 410 mm |
| 重量 | 18.6 kg |
| 允許環境溫度 | 5 - 40 °C |
| 允許相對濕度 | 80 % |
| DIN EN 60529 保護方式 | IP 20 |
| RS 232接口 | 是 |
| USB接口 | 是 |
| 模擬輸出 | 是 |
| 電壓 | 100 - 240 V |
| 頻率 | 50/60 Hz |
| 儀器輸入功率 | 100 W |
| 儀器輸入功率 待機 | 3.3 W |
