產(chǎn)品描述

Hard-Shell Low-Profile 96-Well Semi-Skirted PCR Plates are compatible with many cyclers, including Applied Biosystems 7500 fast and ViiA 7 fast instruments and many of Bio-Rad’s thermal cyclers and real-time PCR detection systems. Hard-Shell Plates are specifically designed to withstand the stresses of heat sealing, thermal cycling, and robotic handling. The patented* two-component microplate design provides superior stability and flatness, allowing precise positioning for automation. The low-profile wells are optimized for low-volume reactions and fast PCR.

Key Features and Benefits

• Semi-skirted — compatible with Applied Biosystems 7500 fast and ViiA 7 fast instruments
• Highly versatile design — provides compatibility with many Bio-Rad thermal cyclers and real-time PCR detection systems, including the C1000 Touch™ and CFX instrument series
• Extremely uniform wells — reduce well-to-well variability in optical assays performed in real-time PCR
• Black lettering — facilitates well identification
• Rigid shell — ideal for heat sealing methods with instruments such as the PX1™ PCR Plate Sealer

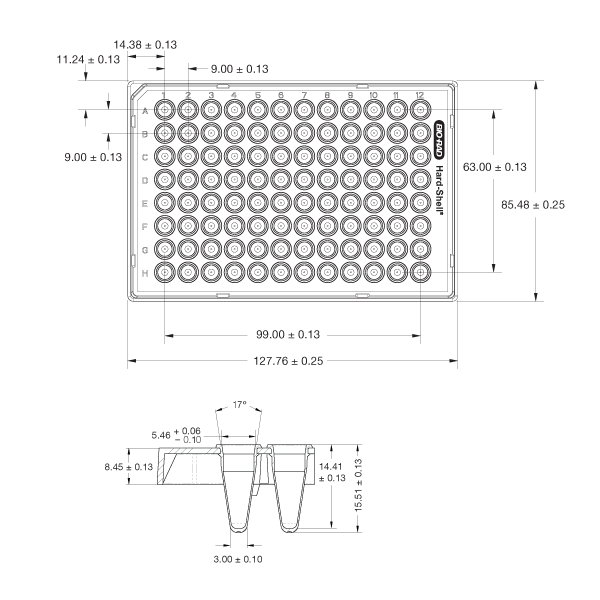

Plate Dimensions

Not drawn to scale.
All dimensions in mm, unless otherwise noted.

美國Bio-rad伯樂Hard-Shell® 96-Well PCR Plates96孔板HSL9605

Microplate Dimensions	Hard-Shell® Low-Profile 96-Well Semi-Skirted PCR Plates (HSL-9xxx)
Length at base plane	127.76 mm
Width at base plane	85.48 mm
Height overall	15.51 mm
Well depth	14.41 mm
Well diameter at opening	5.46 mm
Well diameter at bottom of conical section	3.00 mm
Well volume	200 µl
Well spacing	9.00 mm
Well angle	17.0 °
Well offset
Left edge to well A1	14.38 mm
Top edge to well A1	11.24 mm
Center of A1 to center of A12	99.00 mm
Center of A1 to center of H1	63.00 mm

Additional Details

• White-well option for increased fluorescent signal strength
• Color-coded skirt options with clear and white wells
• Low-cost, user-readable bar code option for convenient database tracking
• Footprint and well spacing match ANSI/SBS standard dimensions
• Reaction volumes of 5–125 µl (200 µl maximum)
• Process sampling and testing to ensure that plates are free of DNase, RNase, and human DNA

Compatible Thermal Cyclers

• Applied Biosystems fast cyclers (9800 fast and Veriti fast)
• Bio-Rad^® C1000™, C1000 Touch, and S1000™
• Eppendorf Mastercycler series

Compatible Real-Time PCR Detection Systems

• Applied Biosystems fast instruments (7500 fast and ViiA 7 fast)
• Bio-Rad^® CFX96™, CFX96 Touch™, CFX96 Touch Deep Well™, and CFX Connect™
• Eppendorf Mastercycler ep realplex

* Hard-Shell plates are covered by one or more of the following U.S. patents or their foreign counterparts owned by Eppendorf AG: U.S. Patent Numbers 7,347,977; 6,340,589; and 6,528,302.

美國Bio-rad伯樂Hard-Shell® 96-Well PCR Plates96孔板HSL9605

技術(shù)參數(shù)：

Well/tube format	96-well
Well/tube profile	Low
Skirt format	Semi-skirted
Barcoded PCR plate	No
Compatible instruments	Applied Biosystems 9800 fast Applied Biosystems Veriti fast Applied Biosystems 7500 fast Applied Biosystems ViiA 7 fast Bio-Rad® C1000™, C1000 Touch™ Bio-Rad® S1000™ Bio-Rad® CFX96™, CFX96 Touch™ Bio-Rad® CFX96 Touch Deep Well™ Bio-Rad® CFX Connect™  Eppendorf Mastercycler series Eppendorf Mastercycler ep realplex
Well/tube color	White
