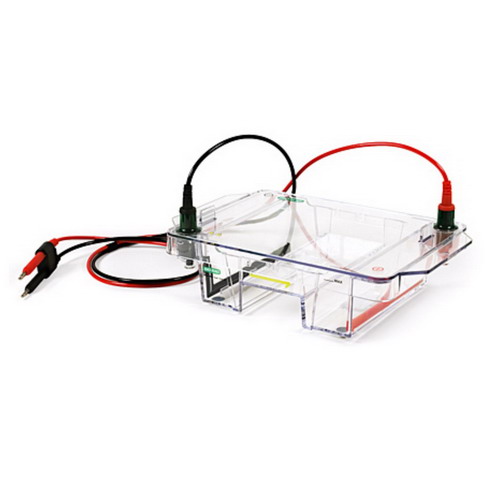

Bio-rad美國伯樂寬式迷你水平電泳槽Mini-Sub Cell GT Cell1704485

Bio-rad美國伯樂寬式迷你水平電泳槽Mini-Sub Cell GT Cell1704485 | 時間: September-8 12:30:28 | 分類:其它儀器

凌儀生物提供高速離心機，美國Bio-rad伯樂電泳，德國eppendorf艾本德移液器，美國ABI基因擴增儀PCR，雅培原位雜交儀，Thermo熱電離心機等實驗室儀器設備，以及Corning康寧，Axygen愛思進，Greiner格瑞拉等耗材要省錢，別錯過哦。

產品介紹：

重新設計的寬型Mini-Sub cell GT電泳槽提供了更新功能，可使用電泳分離更加容易。寬式Mini-Sub cell GT電泳槽適用于多樣本快速篩選應用。這個受歡迎的系統有一個寬闊的平臺，每梳可以分離30個樣本。寬式Mini-Sub cell GT槽與Sub-Cell GT槽寬度相同，因此梳支架，電泳梳和15 x 10厘米凝膠托盤可與更大的Sub-Cell GT裝置互換使用。

所有寬小型電池GT系統都可容納ReadyAgarose預制膠以節省時間并允許進行高度可重復的分離。這些電泳槽包括一個緩沖液槽，一個帶電纜的安全蓋和一個水準氣泡。還提供了包括其他附件的系統配置;有關更多詳細信息，請參閱“寬式Mini-Sub Cell GT完整系統選擇指南”。

Bio-rad美國伯樂寬式迷你水平電泳槽Mini-Sub Cell GT Cell1704485

功能：

QuickSnap *電極拆卸方便，簡化了清潔工作
底座側面的箭頭指示運行方向，可確保凝膠的方向正確
彩色編碼的帶標記的電極和帶標記的底座確保蓋子可以正確安置在底座上
通過基部上的拉環，可輕松移除蓋子，從而減少緩沖液溢出量，還可防止蓋位置不正確
反向兼容設計允許將這些電泳槽用于較早型號的組件
透明塑料結構，可以方便地查看樣本
具有熒光標尺的紫外透明凝膠托盤**
用于直接在槽中灌制您自己的凝膠的凝膠灌制口，或者用于無膠條式灌制的可選制膠盤**
可滿足一切需求的梳（與多通道吸管兼容的梳，高度固定的嵌入式梳，可調節高度的梳和制備梳）**

寬迷你ReadySub Cell單元格

寬式迷你ReadySub-Cell GT電泳槽與Mini-Sub cell GT電泳槽相同，只不過它專用于運行ReadyAgarose預制膠。這些凝膠可牢固鎖室到寬式迷你ReadySub-Cell室中，操作方便且具有可重復性。此電泳槽不包括灌注口，樣本盤或電泳梳。
**請單獨購買ReadySub-Cell GT系統。

寬的Mini-Sub Cell GT完整系統

Bio-rad美國伯樂寬式迷你水平電泳槽Mini-Sub Cell GT Cell1704485

			UVTP托盤（cm）		梳		PowerPac基本電源
貨號	灌制口	制膠盤	15 x 7 *	15 x 10	15孔	20孔	PowerPac基本電源
寬微型單元格GT系統
170-4405	•		•		•	•
170-4468				•	•	•
170-4485	•	•	•		•	•
170-4469		•		•	•	•
164-0301		•		•	•	•	•
170-4489
164-0304							•

*允許使用澆注口在電泳槽中澆注凝膠;可使用制膠盤灌注15 x 10厘米凝膠
寬微型電池電選梳選擇指南

貨號	孔數量	高度*	厚度	寬度孔	長度牙齒	體積（在5毫米深凝膠中）
寬式Mini-Sub Cell GT系統的梳**
170-4449	三十	固定	1.5毫米	2.7毫米	14毫米	20.25μl
170-4344	三十	可調	1.5毫米	2.7毫米	19.1毫米	20.25μl
170-4447	20	固定	0.75毫米	5毫米	15毫米	18.75微升
170-4448 ***	20	固定	1.5毫米	5毫米	15毫米	37.5微升
170-4321	20	可調	0.75毫米	4.8毫米	19.1毫米	17μl
170-4322	20	可調	1.5毫米	4.8毫米	19.1毫米	34μl
170-4445	15	固定	0.75毫米	6毫米	15毫米	22.5微升
170-4446 ***	15	固定	1.5毫米	6毫米	15毫米	45μl
170-4323	15	可調	0.75毫米	5.5毫米	19.1毫米	21μl
170-4324	15	可調	1.5毫米	5.5毫米	19.1毫米	42μl
170-4443	10	固定	0.75毫米	10毫米	14毫米	37.5微升
170-4444	10	固定	1.5毫米	10毫米	14毫米	75μl
170-4325	10	可調	0.75毫米	9.9毫米	19.1毫米	37μl
170-4326	10	可調	1.5毫米	9.9毫米	19.1毫米	74μl

*固定高度電泳梳必須與GT凝膠托盤一起使用。可調節高度的梳需要具支架，目錄編號為170-4320。
**寬式Mini-Sub Cell GT電泳槽的電泳梳可與子電池GT電泳槽一起使用，反之亦然。
***系統中附含電泳梳。

技術參數：

電泳槽尺寸（寬 x 長 x 高）	17.8 x 25.5 x 6.8 厘米
凝膠托盤尺寸 (OD)（寬 x 長）	15 x 7 厘米 15 x 10 厘米
是否支持 ReadyAgarose 凝膠	是，寬迷你和 96 Plus 格式
樣本通量	10–60
基本緩沖液需要量	~650 ml
緩沖液再循環	否
溴酚藍遷移	~4.5 cm/hr（75 V 下）

訂購信息：

	Wide Mini-Sub Cell GT System 1704405 Horizontal electrophoresis system, includes 15- and 20-well combs, 15 x 7 cm UV-transparent tray, casting gates		Wide Mini-Sub® Cell GT System 1704468 Horizontal electrophoresis system, includes 15- and 20-well combs, 15 x 10 cm UV-transparent tray
	Wide Mini-Sub Cell GT System 1704485 Horizontal electrophoresis system, includes 15- and 20-well combs, 15 x 7 cm UV-transparent tray, casting gates, mini-gel caster		Wide Mini-Sub Cell GT Cell and PowerPac Basic Power Supply 1640301 Wide horizontal electrophoresis system, includes 15- and 20-well combs, gel caster, 15 x 10 cm UV-transparent tray, basic power supply (#164-5050)
	Wide Mini ReadySub-Cell GT Cell 1704489 Horizontal electrophoresis cell, includes lid and electrodes; accommodates 20-, 32-, and 2 x 32-well wide mini ReadyAgarose gels		Wide Mini ReadySub-Cell GT Cell and PowerPac Basic Power Supply 1640304 Horizontal electrophoresis system for wide mini ReadyAgarose precast gels, includes basic power supply (#165-5050)

配件：

	Wide Mini Handcasting Kit 1704497 Agarose wide mini-gel casting kit, includes 15 x 7 cm tray, casting gates, 15- and 20-well 1.5 mmfixed-height combs		Mini-Gel Caster 1704422 Pkg of 1, gel caster for use with Mini-Sub and wide Mini-Sub cell GT systems
	Sub-Cell GT UV-Transparent Wide Mini-Gel Tray 1704426 Pkg of 1, 15 x 7 cm gel tray, 2 slots for fixed-height combs, for use with wide Mini-Sub cell GT systems		Sub-Cell GT UV-Transparent Gel Tray 1704416 Pkg of 1, 15 x 10 cm gel tray, 2 slots for fixed-height combs; can be used with wide Mini-Sub cell GT cell, compatible with DNA Sub-Cell system
	Wide Mini-Sub Cell GT Casting Gates 1704425 Pkg of 2, horizontal agarose gel electrophoresis casting gates, for use with wide Mini-Sub cell GT systems		Wide Mini-Sub Cell GT Anode (Red), QuickSnap Electrode Assembly 1704372 Pkg of 1, electrode assembly for use with wide Mini-Sub cell GT systems, 2009 model
	Wide Mini-Sub Cell GT Cathode (Black), QuickSnap Electrode Assembly 1704373 Pkg of 1, electrode assembly for use with wide Mini-Sub cell GT systems, 2009 model		Wide Mini-Sub Cell GT Anode (Red) Electrode Assembly 1704423 Pkg of 1, electrode assembly for use with wide Mini-Sub cell GT systems
	Wide Mini-Sub Cell GT Cathode (Black) Electrode Assembly 1704424 Pkg of 1, electrode assembly for use with wide Mini-Sub cell GT systems		Comb Holder 1704320 Pkg of 1, horizontal electrophoresis comb holder, for use with Sub-Cell and wide Mini-Sub cell adjustable-height combs

梳子：

	30-Well Comb 1704449 Pkg of 1, 14 cm wide, 1.5 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray		30-Well Comb 1704344 Pkg of 1, 14 cm wide, 1.5 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320)
	20-Well Comb 1704447 Pkg of 1, 14 cm wide, 0.75 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray		20-Well Comb 1704448 Pkg of 1, 14 cm wide, 1.5 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray
	20-Well Comb 1704321 Pkg of 1, 14 cm wide, 0.75 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320)		20-Well Comb 1704322 Pkg of 1, 14 cm wide, 1.5 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320)
	15-Well Comb 1704445 Pkg of 1, 14 cm wide, 0.75 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray		15-Well Comb 1704446 Pkg of 1, 14 cm wide, 1.5 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray
	15-Well Comb 1704323 Pkg of 1, 14 cm wide, 0.75 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320)		15-Well Comb 1704324 Pkg of 1, 14 cm wide, 1.5 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320)
	10-Well Comb 1704443 Pkg of 1, 14 cm wide, 0.75 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray		10-Well Comb 1704444 Pkg of 1, 14 cm wide, 1.5 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray
	10-Well Comb 1704325 Pkg of 1, 14 cm wide, 0.75 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320)		10-Well Comb 1704326 Pkg of 1, 14 cm wide, 1.5 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320)
	Preparative Comb for Sub-Cell and Wide Mini-Sub Cell Systems 1704442 Pkg of 1, 1.5 mm thick, preparative comb with 4 preparative and 2 reference wells, fixed height, must use with GT gel tray		Preparative Comb for Sub-Cell and Wide Mini-Sub Cell Systems 1704441 Pkg of 1, 1.5 mm thick, preparative comb with 2 preparative and 2 reference wells, adjustable height
	Preparative Comb for Sub-Cell and Wide Mini-Sub Cell Systems 1704440 Pkg of 1, 1.5 mm thick, preparative comb with 1 preparative and 2 reference wells, fixed height, must use with GT gel tray		Preparative Comb for Sub-Cell and Wide Mini-Sub Cell Systems 1704328 Pkg of 1, 3 mm thick, preparative comb with 1 preparative and 2 reference wells, adjustable height, requires comb holder (#170-4320)
	Multichannel Pipet–Compatible Comb 1704456 Pkg of 1, 0.75 mm thick, fixed height 26-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray		Multichannel Pipet–Compatible Comb 1704457 Pkg of 1, 1.5 mm thick, fixed height 26-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray
	Multichannel Pipet–Compatible Comb 1704454 Pkg of 1, 0.75 mm thick, fixed height 18-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray		Multichannel Pipet–Compatible Comb 1704455 Pkg of 1, 1.5 mm thick, fixed height 18-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray
	Multichannel Pipet–Compatible Comb 1704452 Pkg of 1, 0.75 mm thick, fixed height 14-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray		Multichannel Pipet–Compatible Comb 1704453 Pkg of 1, 1.5 mm thick, fixed height 14-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray
	Multichannel Pipet–Compatible Comb 1704450 Pkg of 1, 0.75 mm thick, fixed height 10-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray		Multichannel Pipet–Compatible Comb 1704451 Pkg of 1, 1.5 mm thick, fixed height 10-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray
